| 원래 장소: | 중국에서 만들어집니다 |
| 브랜드 이름: | Aramid Filter Bags |
| 인증: | ISO9001-2015 |
| 모델 번호: | 공기 정화 필터 에어백 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | Negotiable |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 15 25 35 45 75 90 120 160 220 마이크론 노멕스(아라미드)필터 자루 여과 필터가방 | 두께: | ≥2.0 Mm |
|---|---|---|---|
| 적용 가능한: | 산업 집진기 | 특징: | 15 25 35 45 75 90 120 160 220 마이크론 집진, 열 저항성, 고급 품질 |
| 중량: | 450GSM ~ 550GSM | 용법: | 발전소를 채굴하면서, 15 25 35 45 75 90 120 160 220 마이크론 석고 발전소, 시멘트 플랜트, 불량품 소각로, 액체 유동상 보일러와 석탄은 보일러.을 해고했습니 |
| 타입: | 15 25 35 45 75 90 120 160 220 마이크론 PTFE 진공 청소기 가방 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 15-30 M3 / m2.m | 여과 효율성: | < 5mg=""> |
| 하이 라이트: | 1000 밀리미터 아라미드 필터가방,35 마이크론 아라미드 필터가방,450gsm 공기 정화 필터 에어백 |
||
Description:
Material:Nomex(Aramid)Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 120~200 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
|
Composition |
PE, Nomex, PPS, PTFE, P84, Fiberglass filter material dust filter bag |
|||
|
Weight (g/m2) |
450 |
500 |
550 |
|
|
Thickness(mm) |
2.1 |
2.3 |
2.5 |
|
|
Air permeability(L/m2/s) |
19 |
15 |
12 |
|
|
Tensile strength (N/5×20cm) |
Warp |
650 |
700 |
800 |
|
Weft |
1150 |
1200 |
1300 |
|
|
Tensile elongation(%) |
Warp |
<35 |
<35 |
<35 |
|
Weft |
<55 |
<55 |
<55 |
|
|
Broken strength(Mpa/min) |
2.55 |
2.50 |
2.40 |
|
|
Working temperature(℃) |
≤ 260 |
|||
|
Short time working temperature(℃) |
280 |
|||
|
Anti-acid |
Excellent |
|||
|
Anti-alkali |
Fair |
|||
|
Anti-abrasion |
Excellent |
|||
|
The stability of water solution |
Medial |
|||
|
Finishing treatment |
High temperature hot pressing,Singeing |
|||

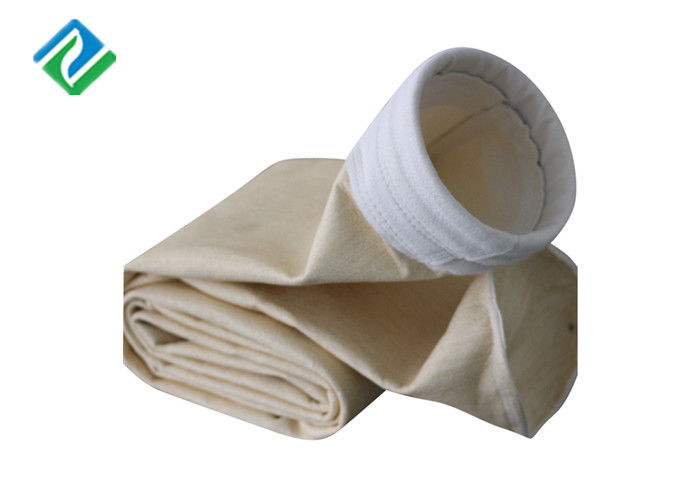

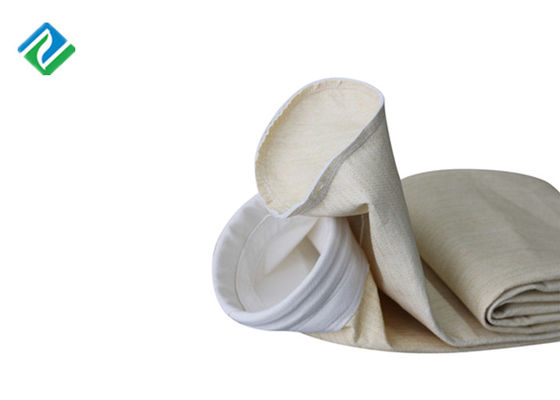

Product Image
Production Features:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
