| 원래 장소: | 허페이, 안후이 |
| 브랜드 이름: | Liquid Filter Bag |
| 인증: | ISO9001-2015 |
| 모델 번호: | 먼지 수집가 여과 백 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 5 10 25 50 100 150 200 250 300 400 500 마이크론 액체 필터 가방 | 효율: | 99.9% 고효율 필터가방 |
|---|---|---|---|
| 적용 가능한: | 발전소, 에너지 & 마이닝, 건설 작업, 음식 & 음료 공장을 제조하기 | 끝마무리 처리: | 까맣게 타면서, 캘린더에 걸기 |
| 중량: | 450GSM ~ 550GSM | 용법: | 5 10 25 50 100 150 200 250 300 400 500 마이크론 먼지 휠터 |
| 타입: | 5 10 25 50 100 150 200 250 300 400 500 마이크론 P84(Polyimide)with PTFE 얇은막 필터가방 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 1.68 m3/m2/min | ||
| 강조하다: | 450gsm 액체 필터 Bag,25 마이크 액체 필터 Bag,550gsm 팰트 흡진장치 가방 |
||
Needle punched non-woven polyester felt polyester 25 micron liquid filter bag
Quick Detail:
1. High quailty
2. Competitive price
3. ISO certification
4. Strict quality control
Specification of liquid filter bag
| Fiber | Abrasion resistance | Weakly acid | Strongly acid | Weakly alkali | Strongly alkali | Solvent | Temperature (°C) |
| PE | Very good | Very good | Good | Good | Poor | Good | 130-150 |
| Nylon | Excellent | General | Poor | Excellent | Excellent | Good | 135-149 |
| PP | very good | Excellent | Excellent | Excellent | Excellent | General | 90-110 |
Filter bags Specifications |
|
| Filter Media | nylon Felt, polyester Felt, polypropylene |
| Maximum Operating Temperature | Polypropylene: 200-220° F (93-104° C) Polyester: 275-325° F (135-162° C) Nylon: 275-300° F (135-149° C) |
| Micron Rating | Polypropylene: 0.5, 1, 3, 5, 10, 25, 50, 100, 200 Polyester: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 200 Nylon: 25, 50, 100, 150, 200, 300, 400, 500, 600 |
| Size | 1: 7" x 16" (17.78 cm x 40.64 cm) 2: 7" x 32" (17.78 cm x 81.28 cm) 3: 4" x 8.25" (10.16 cm x 20.96 cm) 4: 4" x 14" (10.16 cm x 35.56 cm) 5: 6 " x 22" (15.24 cm x 55.88 cm) |
| Collar Ring | Polypropylene ring Polyester ring galvanized steel ring Stainless steel ring Rope |
| Remarks | The length of filter bags can be customized. If your filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag. |
| Please send us you inquiry specification detail by email for quote, thanks. | |

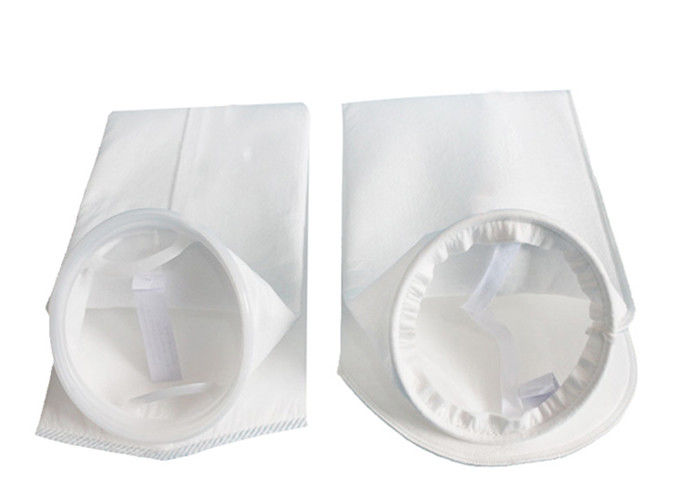

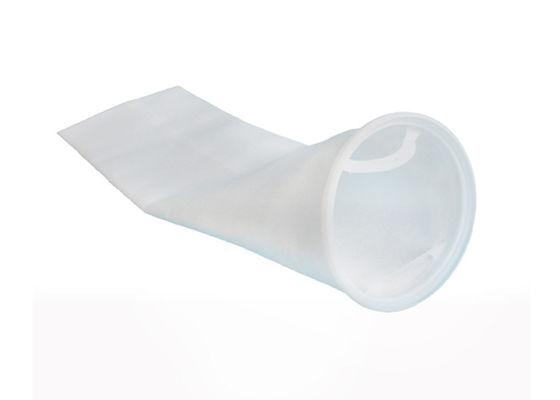

Product Show
Advantages of Liquid Filter Bag
1. Inside-outside flow configuration : It can capture contaminants effectively on the inside.
2. Plastic or steel seal : It is necessary and helpful for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of our good performance filter bags are provided in both plastic and steel ring sealing collar versions that will be fit for most filter bag manufactures' housings.
3. Welded seams and thermally treated exterior surfaces It is efficient for control of fiber migration.
4. Our material has the special ability to handle viscous fluids.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Application fields:
1 ) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2 ) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3 ) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4 ) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5 ) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6 ) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
