| 원래 장소: | 중국에서 만들어집니다 |
| 브랜드 이름: | Polyester Filter Bags |
| 인증: | ISO9001-2015 |
| 모델 번호: | 아라미드 Fabric+glassfiber 먼지 필터 주머니 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 0.1 마이크론 0.5 마이크론 1 마이크론 필터가방 먼지 필터 주머니 수집기 가방 | 두께: | 1.6-2mm |
|---|---|---|---|
| 애플리케이션: | 건축 자재 판매점, 제조 공장, 인쇄소, 시공 | 특징: | 0.1 마이크론 0.5 마이크론 1 마이크론 높은 여과 정밀도 안티 스태틱 항산성과 알칼 찰과상 방지 |
| 중량: | 450GSM ~ 550GSM | 용법: | 0.1 마이크론 0.5 마이크론 1 마이크론 산업 흡진장치 |
| 타입: | 0.1 마이크론 0.5 마이크론 1 마이크론 포켓 필터, 아라미드 필터 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 120 L/m2/S | 여과 효율성: | < 5mg=""> |
| 강조하다: | 200 마이크론 폴리에스테르는 필터가방을 느꼈습니다,2 밀리미터 폴리에스테르 펠트 필터가방,550gsm 200 마이크론 필터가방 |
||
Product Description
1,Brief Introduction Of Bag filters
Bag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, anti-static, acid resistant and more.
2,The Types of Bags We Produce
Polyester filter bag,polyester antistatic filter bag,polyester filter bag with PTFE membrane,polyester filter bag water and oil repellent,pp filter bag,aramid filter bag ,acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84 filter bag,pps filter bag,fiberglass filter bag,PTFE mix pps filter bag,Nomex filter bag and FMS and so o
3,Remarks
1) The length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3)Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4)Inspection: Filter bags will be according to the national standards, industry standards and enterprise standards.
4,Advantages of the product:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factort manufacturer could contal quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition
Specification:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, mixing lead static fibre or stripe lead static fibre Treatment. |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1100 |
| Tensile elongation (%): | Warp:<35 Weft:<55 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Surface Resistance(Ω.cm) | 103~108 |
| Anti-acid | Middle |
| Anti-alkali | Middle |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Middle |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry,power plant etc. |

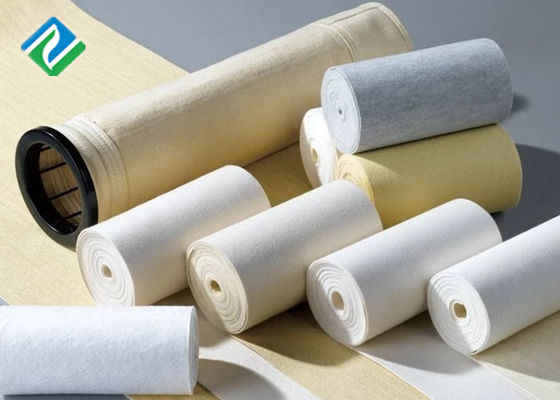

Product Show
Advantages of the product:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factort manufacturer could contal quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition
Product Feature:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity.
3.Excellent anti-abrasion,good finishing treatment.
4.Good raw material, competitive price.
5.High filtration efficiency .
6.Fast delivery.
7.Size can be customized.
8.Factory manufacturer could contol quality and price.
9.Strict quality inspection and contol.
10.Professional designer team to match with your operating condition.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
9. Mining Industry.
10. Grain Processing.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
