| 원래 장소: | 중국에서 만들어집니다 |
| 브랜드 이름: | Fiberglass Filter Bag |
| 인증: | ISO9001-2015 |
| 모델 번호: | 아라미드 Fabric+glassfiber 먼지 필터 주머니 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 공기 정화 필터를 위한 25 마이크론 50 마이크론 100 마이크론 메타스 노멕스 필터가방 | 두께: | 1.6-2mm |
|---|---|---|---|
| 애플리케이션: | 건축 자재 판매점, 제조 공장, 인쇄소, 시공 | 특징: | 25 마이크론 50 마이크론 100 마이크론 높은 여과 정밀도 안티 스태틱 항산성과 알칼 찰과상 방지 |
| 중량: | 450GSM ~ 550GSM | 용법: | 25 마이크론 50 마이크론 100 마이크론 산업 흡진장치 |
| 타입: | 25 마이크론 50 마이크론 100 마이크론 포켓 필터, 아라미드 필터 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 120 L/m2/S | 여과 효율성: | < 5mg=""> |
| 강조하다: | 1.6 밀리미터 폴리에스테르 니들 펠트 필터가방,550gsm 폴리에스테르 바늘은 필터가방을 느꼈습니다,25 um 비 직물 필터 가방 |
||
Description
Filter bag is the core of the dust filter components. The bag filter cost bag filter housing bag polyester filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.
Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
The diameter of the filter bag is 115-300mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.
Product Information
| Article Name | FG350 | FG550 | FG750 | |
| Ingredients | Fiber |
E-glass |
E-glass |
E-glass |
| Loss on ignition | % | 10-13 | 10-13 | 10-13 |
| Weight | g/m2 | 350±15 | 550±15 | 750±15 |
| Thickness | mm | 0.35±0.03 | 0.5±0.2 | 1.0±-0.2 |
| Weave | 1/3 twill | 1/3 twill | Double twill | |
| Permeability | cm3/cm2/s.127pa | 4-7 | 3-6 | 3-5 |
|
Tensile breaking strength(N/2.5cm) |
Warp | ≥1300 | ≥2100 | ≥2300 |
| Weft | ≥800 | ≥1300 | ≥1800 | |
|
Maximum shrink of 90 mins |
Temperature(°C) | 260 | 260 | 260 |
| % | ≤1 | ≤1 | ≤1 | |
| Service Temperature(°C) | Continuous | 240 | 240 | 240 |
| Instant | 260 | 260 | 260 | |
| Velocity of filtration | m/min |
< 0.6 |
< 0.7 |
< 1.0 |

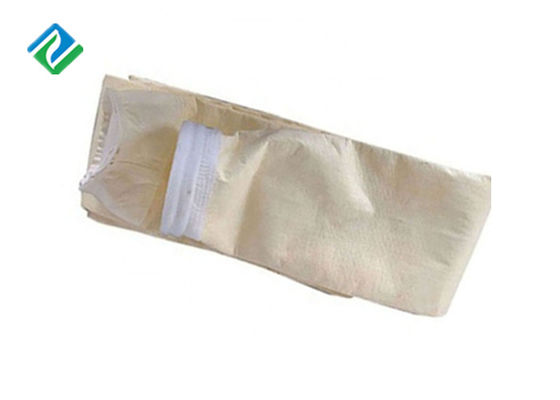

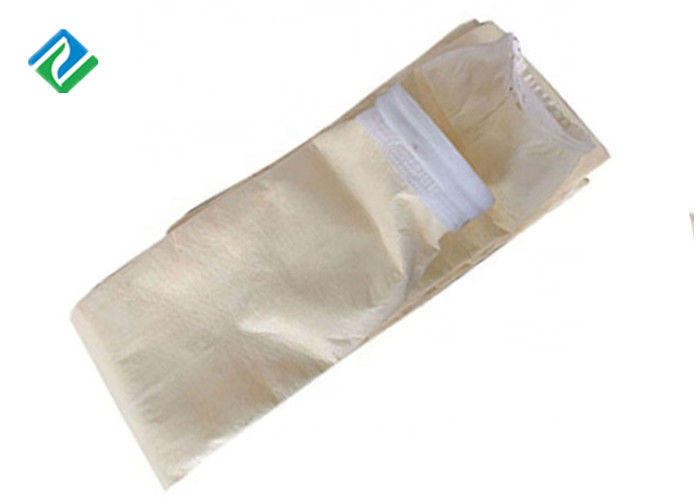

Product Show
Product Feature:
1.High temperature resistance.
2.Good anti-acid/anti-alkali capacity.
3.Excellent anti-abrasion capacity.
4.High filtration efficiency.
5.Good raw material, competitive price.
6.Fast delivery.
7.Size can be customized.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
