| 원래 장소: | 중국에서 만들어집니다 |
| 브랜드 이름: | Ptfe Dust Collector Filter Bags |
| 인증: | ISO9001-2015 |
| 모델 번호: | 폴리에스테르 아크릴 PPS P84 PTFE 섬유 유리 먼지 필터 주머니 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 0.5 1 5 25 50 100 250 500 마이크론 고온 필터가방 | 두께: | 1.6-2mm |
|---|---|---|---|
| 애플리케이션: | 0.5 발전소를 제조하면서, 판매점을 출력한 재료사를 구축하는 1 5 25 50 100 250 500 마이크론 코스트럭션은 일합니다 | 특징: | 0.5 1 5 25 50 100 250 500 마이크론 높은 여과 정밀도 안티 스태틱 항산성과 알칼 찰과상 방지 |
| 중량: | 500gsm, 550gsm 및 700gsm | 용법: | 0.5 1 5 25 50 100 250 500 마이크론 산업 흡진장치 |
| 타입: | 0.5 1 5 25 50 100 250 500 마이크론 포켓 필터, 아라미드 필터 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 120 L/m2/S | 여과 효율성: | < 5mg=""> |
| 강조하다: | 500gsm PTFE 필터가방,2 밀리미터 PTFE 필터가방,PPS 백하우스 필터가방 |
||
Working Principle
The dust bag is the heart of the bag dust collector during operation. Usually, a cylindrical pulse filter bag is suspended vertically in the dust collector. Some large particles of dust are separated by inertia and fall directly into the ash hopper. Dust-containing gas enters the filter bag filter area of the box. Most of the dust is captured on the outer surface of the filter bag, and clean gas enters the inside of the filter bag through the filter material , and then discharged from the air outlet. The cage inside the filter bag is used to support the filter bag and prevent the filter bag from collapsing. At the same time, it helps to remove and redistribute the dust cake.
Specifications:
|
Fiber Composition
|
Polyester
|
Polyester (PET) with PTFE membrane
|
PTFE
|
|
PPS
|
Nomex
|
|
Weight (g/m2)
|
500
|
500
|
750-800
|
500
|
500-550
|
450-600
|
|
Thickness (mm)
|
1.7-2.0
|
1.7-2.0
|
1.2-1.6
|
2.1
|
1.8-2.0
|
1.9-2.4
|
|
Running Temperature (°C)
|
130
|
130
|
240
|
180
|
160
|
200
|
|
Peak Temperature (°C)
|
150
|
150
|
260
|
260
|
190
|
240
|
|
Air Permeability
(M3/M2.S. 200Pa) |
8-12
|
8-12
|
5-8
|
14
|
15
|
8-12
|
|
Mechanical Finish
|
Singeing, calendaring, heat-set
|
Singeing,calendaring
|
Heat-set and Singed one side
|
Singeing
|
Singring
coating
Heat-set
|
Singeing
|
|
Chemical Finish
|
membrane
|
PTFE/Teflon
coated
anti-static
Water and oil repellent
|
PTFE impregnated peritoneal
|
PTFE coating, membrane
|
||
|
Warp Of Stretch Strength
|
800
|
1000
|
600
|
900
|
900
|
900
|
|
Welf Of Stretch Strength
|
1200
|
1300
|
800
|
1200
|
1200
|
1200
|
|
Resistance to Acid
|
Medial
|
Fair
|
Excellent
|
Excellen
|
Excellent
|
Fair
|
|
Resistance to Oxidation
|
Excellent
|
Good
|
Excellent
|
Excellent
|
Poor
|
Fair
|
|
Resistance to Alkali
|
Medial
|
Poor
|
Excellent
|
Excellent
|
Excellent
|
Good
|
|
Resistance to Hydrolysis
|
Medial
|
Poor
|
Excellent
|
Excellent
|
Excellent
|
Fair
|
|
Application
|
1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
|
|||||
|
Size
|
Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
|
|||||
|
Filter Bag Top Construction
|
1) Side Load: raw edge top (3” longer than split collar cage length)
2) Top Load: snap band/ring ; double beaded |
|||||
|
Bottom Construction
|
1) Single-ply felted disc bottom
2) 3” bottom; double-ply wearguard
3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction
|
|||||

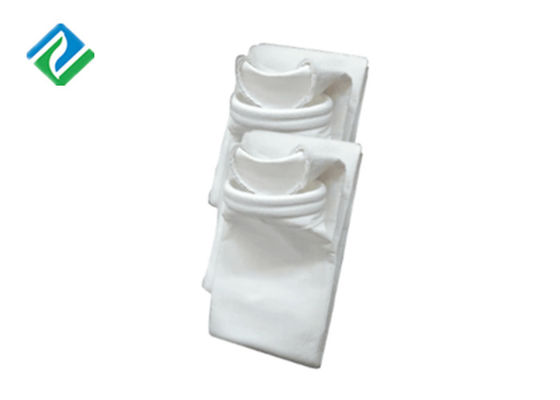

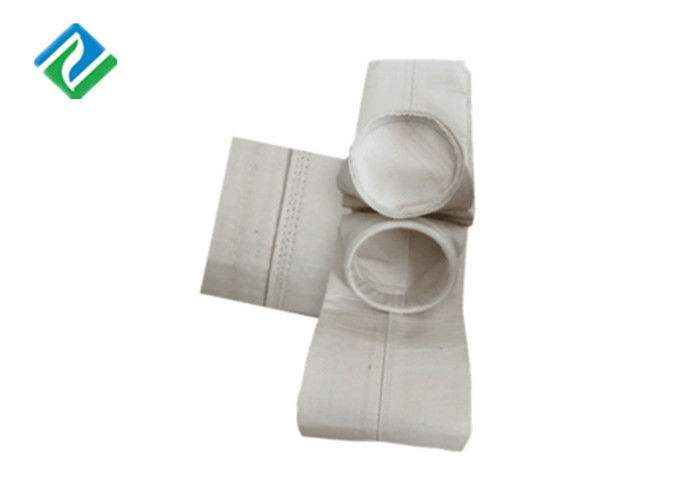

Product Image
Application
1) Food & Beverage Industry:
Filteration for drinking water,mineral water ,wine,dairy products etc.
(2) Petrochemical Industry:
Filteration for lubrication oil,catalyst,mucilage glue,hydrogen pexoxide etc.
(3) Paint Industry
Filteration for emulsion paint,paint raw material,ink and additive etc.
(4) The filteration for different liquid in the industry of Textile,Printing and Paper-making.
(5) Other application:
Filteration for coating,industrial water and electroplate liquid.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
For Chemical Industry fiberglass dust filter bag
fiberglass dust filter bag
Our filter bag for the chemical industry are offered as thorough solutions. This means you will receive expert support not only filter bag design, but also how to optimize the flow parameters of your system to get the absolute best productivity. This process-specific product design and applications engineering approach has proven to be the lowest risk way to optimize your system's performance.
fiberglass dust filter bag
For Cement Industry
fiberglass dust filter ba
We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.
For Power station and Incineration Industry
fiberglass dust filter bag
With PTFE membrane, our filter bags provide near zero emissions for waste processing and power station boiler. Whether you use standard or low grade coals, wood or tires in your boiler, or operate a chemical, hazardous, or medical waste incinerator, all we can deliver consistently high airflow over the life of the filter bags for your application.
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
