| 원래 장소: | 허페이, 안후이 |
| 브랜드 이름: | Non Woven Dust Collector Filter Bags |
| 인증: | ISO9001-2015 |
| 모델 번호: | 먼지 수집가 여과 백 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 7 15 25 35 45 75 90 120 160 220 마이크론 흡진장치 필터가방 | 이음새 처리: | WS 융합된 이음새 / SE 스티칭된 이음새 / R-반원 |
|---|---|---|---|
| 적용 가능한: | 15 25 35 45 75 90 120 160 220 마이크론 시멘트 플랜트, 발전소, 제강소, 마이닝 발전소, 아스팔트 플랜트 등. | 끝마무리 처리: | 까맣게 타면서, 캘린더에 걸기 |
| 중량: | 450GSM ~ 550GSM | 용법: | 15 25 35 45 75 90 120 160 220 마이크론 먼지 휠터 |
| 타입: | 15 25 35 45 75 90 120 160 220 마이크론 포켓 필터, PPS 필터 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 1.68 m3/m2/min | ||
| 강조하다: | 7 마이크론 팰트 흡진장치 가방,250 밀리미터 팰트 흡진장치 가방,FMS 폴리에스테르 필터가방 |
||

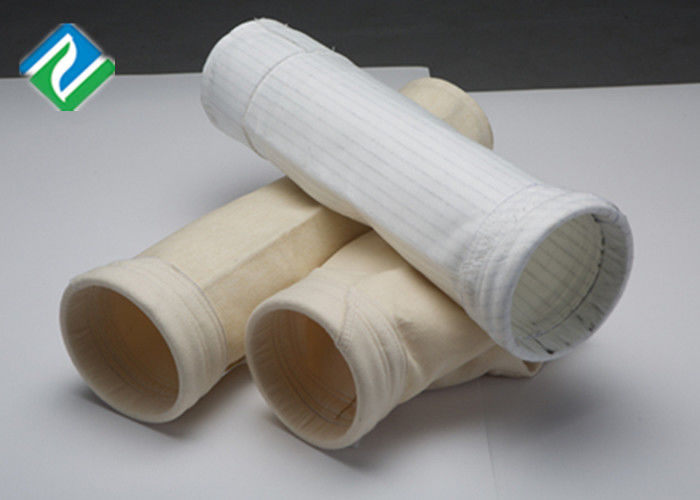

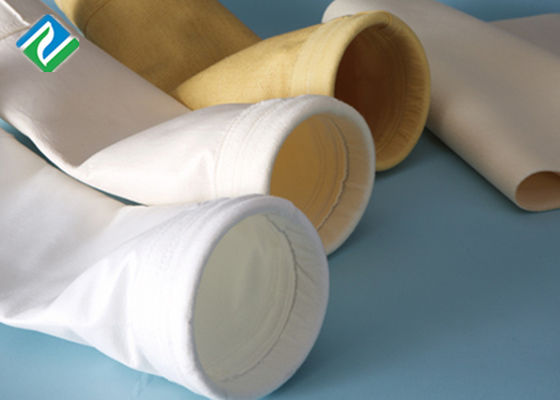

Product Show
Quick details :PPS filter bags is the best choice for coal fired boiler / furnace in thermal power plant . The operation temperature of PPS filter bags is up to 190 degree C.
Features of PPS Filter media / PPS filter bags :
PPS filteris a type of high temperature resistance filter media, the temperature resistant up to 190 C,
PPS filter bags are with excellent chemical resistance except for oxidizing agent such as NO2 and Oxygen.
PPS Filter bags has very good acid resistance and good thermal resistance.
Applications:
In thermal power plant coal boiler, waste incinerator, thermal power plant of fly ash filtration of pulse clear dust collector , PPS filter bag ,Rtyon filter bag are an ideal filtration material.
Specifications of PPS / Ryton Filter Bags :
| Series: | PPS 14oz |
| Material: | PPS (RYTON) 450 - 650g/sq.m needle felt |
| Fibre: | 100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
| Scrim: | 100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
| Weight: | 400 - 650g/m2 (customized) |
| Finishing: | Heat setting, single side singeing, calendering (double sides finishing would be available upon request) |
| Specifications: | Customized according to drawing / sample |
| Packaging: | Polybag in cartons |
| Applications: | Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc. |
| Delivery Time: | 7-45 days |
| Payment Terms: |
Below fiber performance index for your reference.
| Operating Temperature (°C, dry) | Abrasion Resistance | Hydrolysis Resistance | Alkali Resistance | Organic Acid Resistance | Mineral Acid Resistance | Oxidation Resistance (15%) | |
| PPS | 190/ (200) | Good | Excellent | Excellent | Excellent | Excellent | Poor |
How to replace the filter bag
Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).
Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
