| 원래 장소: | 허페이, 안후이 |
| 브랜드 이름: | Non Woven Dust Collector Filter Bags |
| 인증: | ISO9001-2015 |
| 모델 번호: | 먼지 수집가 여과 백 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | Negotiable |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 0.5 마이크론 0.3 마이크론 폴리에스테르 /PP 부직포 필터가방 | 이음새 처리: | WS 융합된 이음새 / SE 스티칭된 이음새 / R-반원 |
|---|---|---|---|
| 적용 가능한: | 시멘트 플랜트, 발전소, 제강소, 마이닝 발전소, 아스팔트 플랜트 등. | 끝마무리 처리: | 까맣게 타면서, 캘린더에 걸기 |
| 중량: | 450GSM ~ 550GSM | 용법: | 0.5 마이크론 0.3 마이크론 먼지 휠터 |
| 타입: | 0.5 마이크론 0.3 마이크론 포켓 필터, PPS 필터 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 1.68 m3/m2/min | ||
| 하이 라이트: | 0.3 마이크론 천 흡진장치 Bags,450gsm 천 흡진장치 가방,폴리에스테르 펄스/초 필터가방 |
||

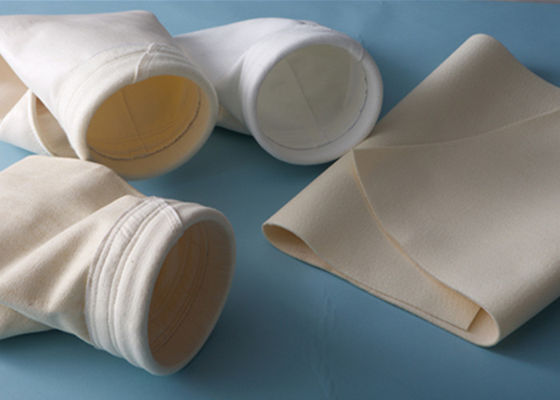

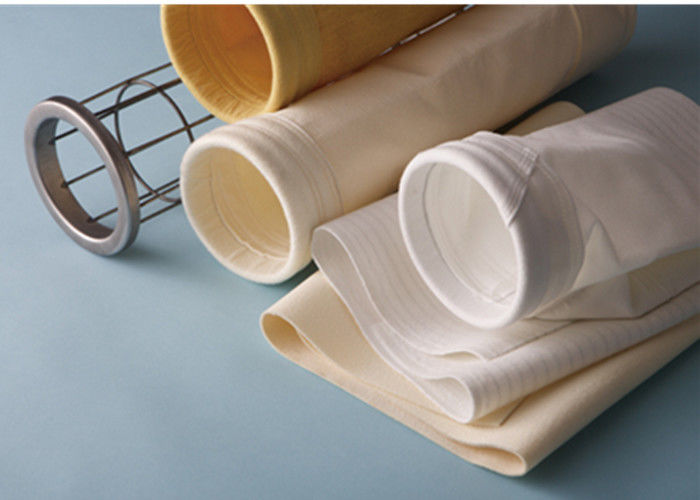

Product Show
Specifications:
| Material | Polypropylene/polypropylene scrim | ||||
| Weight(g/m2) | 500 | 550 | 600 | 650 | |
| Thickness(mm) | 2.0 | 2.2 | 2.4 | 2.6 | |
| Air permeability(m3/m3/min) | 12.6 | 10.8 | 9.6 | 8.4 | |
| Tensile Strength(N/5X20cm) | Warp | >960 | >1150 | >1350 | >1500 |
| Weft | >1060 | >1400 | >1650 | >1800 | |
| Tensile elongation(%) | Warp | <35 | <35 | <35 | <35 |
| Weft | <55 | <55 | <55 | <55 | |
| Working temperature(℃) | Continues | <90 | <90 | <90 | <90 |
| Instant | 110 | 110 | 110 | 110 | |
| Anti-acid | Excellent | Excellent | Excellent | Excellent | |
| Anti-alkali | Excellent | Excellent | Excellent | Excellent | |
| Anti-abrasion | Excellent | Excellent | Excellent | Excellent | |
| Finishing treatment | Singeing or high temperature press | ||||
PP(Polypropylene)
1. Operating Temperature:<90 centigrade
2. Maximum Temperature:<100 centigrade
3. Wear Resistance:Fair
4. Hydrolisis Resistance:Excellent
5. Alkaline Resistance:Excellent
6. Acidic Resistance:Excellent
7. Anti-oxidability:Fair
8. The filter precision can reach less than 1 micron.
Notices:
Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry.
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Air filtration under 90℃
How to replace the filter bag
Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).
Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
