| 원래 장소: | 중국에서 만들어집니다 |
| 브랜드 이름: | Round Dust Extractor Filter Bags |
| 인증: | ISO9001-2015 |
| 모델 번호: | 먼지 수집가 여과 백 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | Negotiable |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 0.1 5 10 25 마이크론 PTFE 필터가방 | 형태: | 라운드 |
|---|---|---|---|
| 적용 가능한: | 산업 집진기 | 끝마무리 처리: | 까맣게 타면서, 캘린더에 걸기 |
| 중량: | 450GSM ~ 550GSM | 용법: | 0.1 5 10 25 마이크론 먼지 휠터 |
| 타입: | 0.1 5 10 25 마이크론 PTFE 진공 청소기 가방 | 작동 온도: | 120-150 급 |
| 공기 침투성: | 15-30 M3 / m2.m | 여과 효율성: | < 5mg=""> |
| 하이 라이트: | 0.1 마이크론 흡진장치 필터가방,PTFE 흡진장치 필터가방,1 마이크론 흡진장치 가방 |
||
Dust Collector Filter Bags Feature
PTFE fiber needled felt is a kind of chemical properties stability fiber, its features are as follows:
--- the continuous working temperature is 250 degrees, the instantaneous temperature is 280 degrees;
--- totally not afraid of pH and oxidation, hardly inflammable;
--- one and only not aging fiber;
--- meet the worst condition, has the extremely long service life, usually life in three years.
100% PTFE needled felt fiber material is mainly used in chemical industry, waste incineration, high temperature resistant liquid filtration, keeps good chemical stability in the complex condition
SPECIFICATIONS
|
SPECIFICATIONS FOR PTFE FILTER BAG
|
|||
|
operation temperature
|
250
|
maximum surge temperature
|
580
|
|
grammage(g/m2)
|
750-1000
|
||
|
anti-acid
|
excellent
|
||
|
anti-alkali
|
excellent
|
||
|
anti-hydrolysis
|
excellent
|
||
|
air permeability(m3/m2*min)
|
1.2-3.1
|
||
|
tensile strength
|
L(N/5*20cm)
|
>1300
|
|
|
W(N/5*20cm)
|
>1500
|
||
|
Use industry
|
continuous operating temperature of 260 degrees or more, instant temperature of 280 degrees, completely afraid of pH and oxidation, almost non-flammable, aging is not the only fiber to meet the harshest conditions, with a very long life, usually in the life of three years the above.
|
||
Comparison of Different Material
| Product Name | NOMEX High Temperature Resistant Needled Felt | Aramid High Temperature Needled Felt | PPS HighTemperature Resistant, Acid-alkali Resistant Needling Felt | |
| Weight(g/㎡) | ≥950 | ≥550 | ≥550 | |
| Material | Alkali free glass fibre/P84 | Aramid/Aramid scrim | PPS/PPS scrim | |
| Thickness(mm) | 2.4-3.0 | 2.0 | 2.0 | |
| Air Permeability(m³/㎡/min ) | 8.0-15.0 | 15.0 | 15.0 | |
| Elogation at break % | Warp | ≤10% | ≤35% | ≤35% |
| Weft | ≤10% | ≤45% | ≤45% | |
| Tensile Strength (N5*20CM) | Warp | ≥2100 | ≥1000 | ≥1400 |
| Weft | ≥2200 | ≥1400 | ≥1400 | |
| Operating temperature | ≤260℃ | ≤200℃ | ≤190℃ | |
| Finish Treatment | Teflon treatment&tectorial membrane | Singeing Calendering &tectorial membrane | Teflon coated&PTFE membrane | |

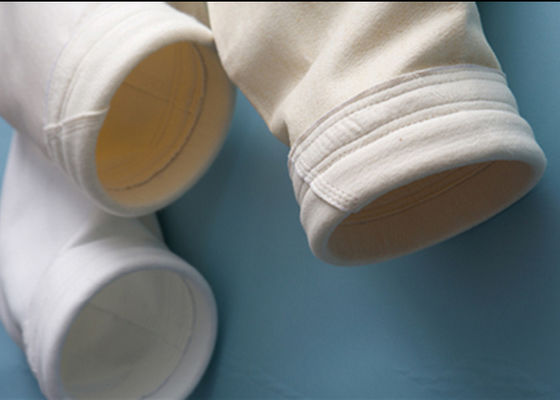

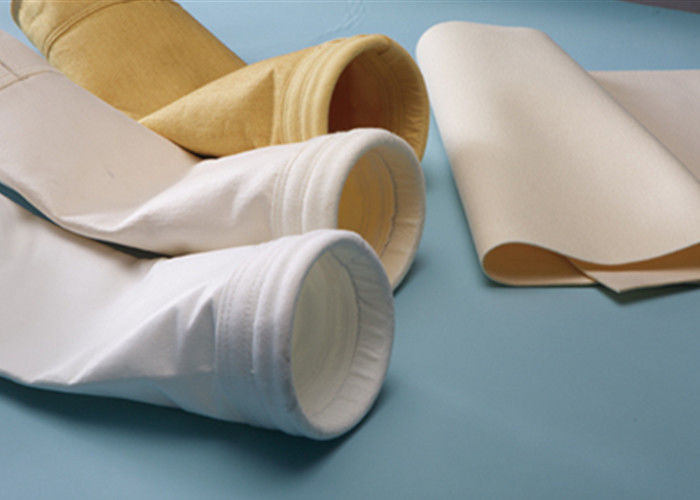

Product Show
Polyester easy cleaning dust filter bags to improve filter efficiency
Easy cleaning dust filter bag is a type of polyester dust filter bag which treated by special process. It has smooth surface,so when dust collectors reverse blowing the dust on the surface very easy to clean up, then improve the filter efficiency of dust collector.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
