| 원래 장소: | 안후이, 중국 |
| 브랜드 이름: | Nomex Aramid Dust Filter Bags |
| 인증: | ISO9001-2008 |
| 모델 번호: | 먼지 수집가 여과 백 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | 50 마이크론 100 마이크론 200 마이크론 산업적 섬유 유리 필터가방 | 재료: | 50 마이크론 100 마이크론 200 마이크론 PPS 산업용 필터 직물 |
|---|---|---|---|
| 적용 가능한: | 석고 공장, 시멘트 플랜트, 불량품 소각로, 유동적 유동층 | 효율: | 50 마이크론 100 마이크론 200 마이크론 99.9% 고효율 필터가방 |
| 중량: | 400-600 GSM (±5%) | 사이즈: | 맞춤화된 DN 130x6000 밀리미터 / |
| 타입: | 50 마이크론 100 마이크론 200 마이크론 공업 분진 수집기, 비직조 필터 | 작동 온도: | 260-280C |
| 공기 침투성: | 200-300 (L / m2 / s) | 생활: | 12-18 달 |
| 강조하다: | 아라미드 먼지 제거 필터가방,6000 밀리미터 먼지 제거 필터가방,400gsm 아라미드 필터가방 |
||
Description:
Material:Nomex(Aramid) and Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. According to your requirements.
Length: 1000mm~8000mm. According to your requirements.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Technical Parameters:
| Fibre | PP, PE, PTFE, Nylon, Polyester,filberglass etc. |
| Scrim | PTFE |
| Weight(G/M2) | 550 |
| Thickness (mm) | 1.8 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 9 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
|
Tensile strength 25mm/NWarp/weft |
1400-1600 |
|
Velocity(m/min) |
0.5-0.8 |
|
Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions. The above filter bag will adopt different post-processing techniques according to the specific working conditions. |
|

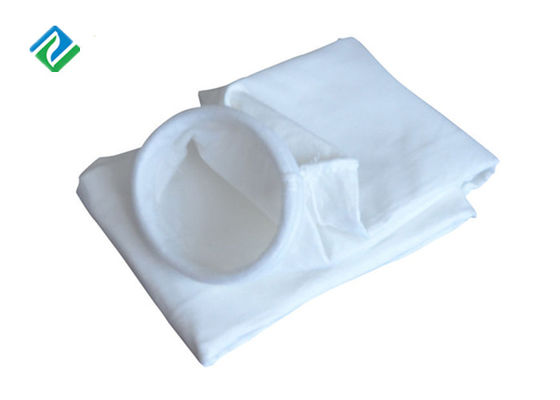

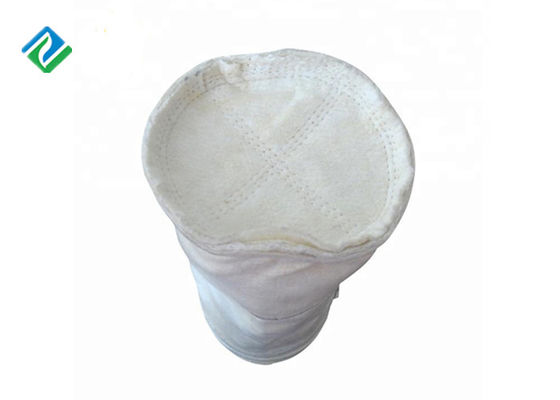

Product Show
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
