| 원래 장소: | 안후이, 중국 |
| 브랜드 이름: | Nomex Aramid Dust Filter Bags |
| 인증: | ISO9001-2008 |
| 모델 번호: | 폴리프로필렌 여과천 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 통 또는 포대 |
| 배달 시간: | 3일이요 |
| 지불 조건: | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력: | 일 당 1000 PC |
| 상품 이름: | PTFE 얇은막 필터가방과 100 마이크론 200 마이크론 시멘트 분진 섬유 유리 | 재료: | 100 마이크론 200 마이크론 폴리프로필렌 여과천 |
|---|---|---|---|
| 적용 가능한: | 석고 공장, 시멘트 플랜트, 불량품 소각로, 유동적 유동층 | 효율: | 99.9% |
| 중량: | 400-600 GSM (±5%) | 색: | 백색/황색 |
| 타입: | 100 마이크론 200 마이크론 공업 분진 수집기, 비직조 필터 | 작동 온도: | 260-280C |
| 공기 침투성: | 200-300 (L / m2 / s) | ||
| 강조하다: | 600gsm PTFE 얇은막 필터가방,100 마이크 PTFE 얇은막 필터가방,노멕스 시멘트 필터가방 |
||
Quick Detail:
High filtration efficiency, long service life
Good anti-abrasion
High temperature grade
Anti-acid, anti-alkali, chemical resistance
High porosity, good air permeability
Good price quality
Laminated compound, grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density, High mechanical characteristics
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Technical Parameters:
| Fibre | PP, PE, PTFE, Nylon, Polyester,filberglass etc. |
| Scrim | PTFE |
| Weight(G/M2) | 550 |
| Thickness (mm) | 1.8 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 9 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
|
Tensile strength 25mm/NWarp/weft |
1400-1600 |
|
Velocity(m/min) |
0.5-0.8 |
|
Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions. The above filter bag will adopt different post-processing techniques according to the specific working conditions. |
|

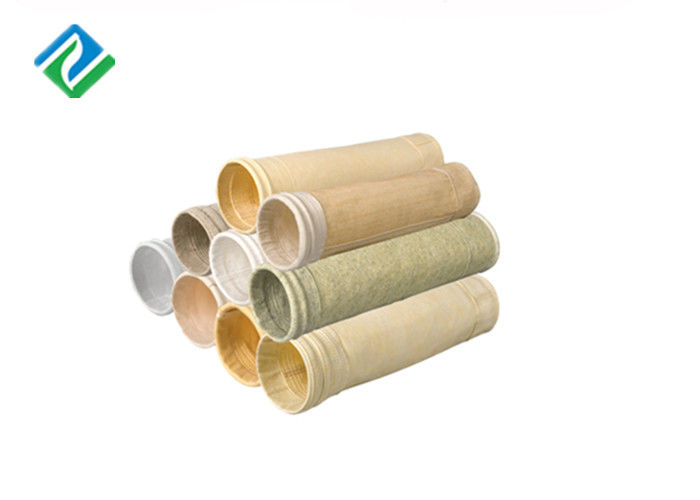

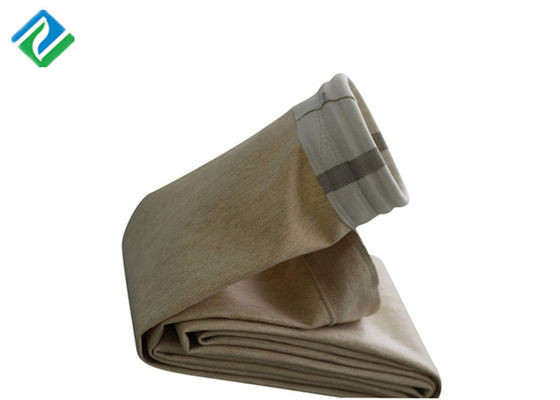

Product Image
How to choose the filter bag ?
he filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
