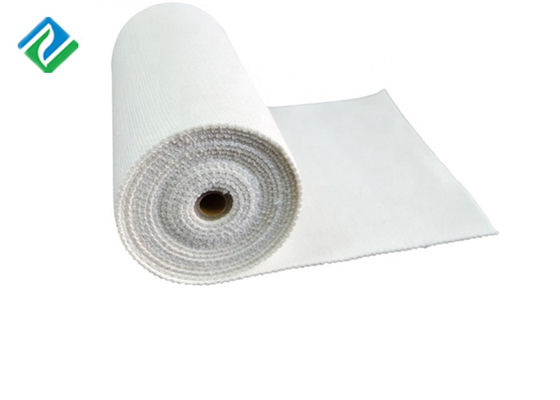

Cement Industry 100% Polyester Air Slide Fabric Cement Air Slide Fabric 3mm 4mm 5mm 6mm.

Product Parameters

PE Air Slide Belt Conveyor Belt for Canvass Belt
We offer a comprehensive range of Polyester Airslide for use in air gravity conveyors, applied many industries, such as cement detergent, transportation (Bulk haulers, Barges). Our products are semi-permeable and manufactured to meet specific permeation ranges ensuring that uniform volumes of air passing. Thickness from 4mm to 8mm, width max 2600mm.

Application: Cement industry,
Mining industry
Chemical plants
Power plant
Food industry.

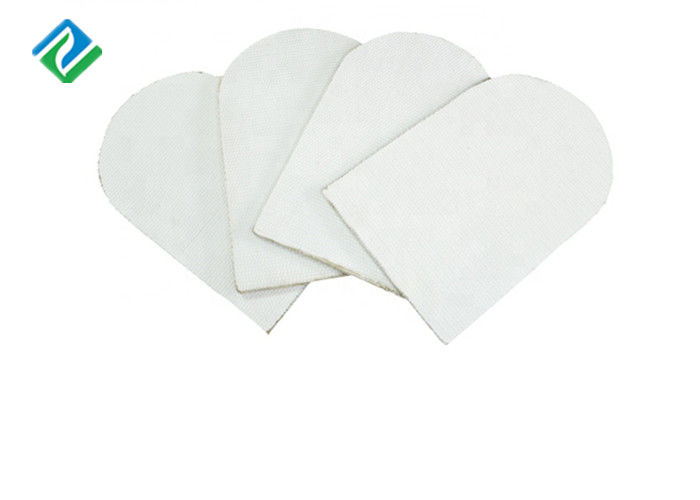

We will sell by rolls with big width, meanwhile, we will cut and process it to complete piece, customer will install directly.
Airslide Fabrics are used in various industries for pneumatic conveying,discharge, fluidising of powder or granular matarials.

We offer Airslide Fabrics are used in various industries for pneumatic conveying,discharge,homogenising and fluidising of powder or granular materials.They are used on pneumatic conveyors,silos of every type,vehicle trucks and ail-wagons and also in ships.

Airslide Fabrics are an indispensable part of cement plan,chemical industry,metallurgical industry,bulk cement tank trucks,bulk cement ship and fixed cement tanks.

Types of Heat Resisting Felt Roller

1 )  500 C temperature resistance, 100% Aramid ( Dupont Fiber ) Heat resistant fiber for production.
Fiber introduction: Aramid (Dupont Fiber) fiber can resist instant 550 C, longtime working with high temperature sections material (300 C ~500 C ), will not melt and pollute Sections Aluminum as Aramid (Dupont Fiber) Fiber is Thermo settings.
2 ).  Kevlar Felt, 480C temperature resistant, 70% Aramid (Dupont Fiber) Fiber blended with 30% carbon fiber to get Kevlar Felt.


Fiber introduction: carbon fiber is also Thermo Setting material will not melt and pollute sections Aluminum, Kevlar Felt can resist instant 480C, long time working in high temperature conditions ( 280 C ~500C),
felt will be in weightlessness. 30% carbon fiber will take calorific conduction and save production cost.


Types of Heat Resisting Felt Belt ( Kevlar / Nomex Roller / Belt )
1 ). 480 C ~500 C Felt Belt
2 ). Nonporous Felt Blet 480 C ~500 C
3 ). Regular Surface conglutinate Felt Belt, 480C ~500 C.

Application of Kevlar Roll Nomex Felt Belt :
1 .  Applided in walking beam, Felt Roller 100% Aramid (Dupont Fiber). 500 C. 12mm thickness.
2 .  Nonporous felt belt is composed with nonporous scrim and needle punched layer. Different tons of extruder will take different belt,


AA class: 3 layer of Aramid (Dupont Fiber) nonporous scrim, tensile strength 35N/ mm, are suitable for
2000tons extruder.
A Class: Composed by 1 layer of Kevlar nonporous scrim,3 layer high strength Polyester scrim. PE layerin the middle can only resist 200 C, suitable for less then 2000 tons extruder.

We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.

Product Show

Working principle

In cement plant:

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

In fluidization silo:

Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.

Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.

In cement vessel's hold:

The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt

Application:

In industry

Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust

Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum

Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder

FAQ

1.Are you a Manufacturer?

100% of manufacturers can visit the production line.

2.What is your mainly product?

Our company mainly has six chains of products, including airslide fabric (belt), tubular fabric, solid woven conveyor belts, solid needle conveyor belts, cotton sifter pads, cotton pipes, filtration fabric and filter bags.

3.Where is the nearest shipping port to your plant factory?

We ship the goods via Tianjing Port.

4.What is the location of your company?

Our factory: Tianjin, China (Mainland)

5.Where is the mainly overseas market?

Now we already export the hose to Brazil, South africa, USA, Peru, Chile, UK, Spain, Germany, India, Indonesia, Russia, Ukraine, Iran. India, Saudi Arabia, U.A.E., Korea......

6.What would be your advantage?

We can supply good quality product, good price. good service, fast delivery, also our export people are more professional.
