Air Slide Belt Polyester Cotton Canvas Fabric 100% Air Slide Fabric For Cement Plant / Power Plant / Chemical Plant

Product Parameters

PE Air Slide Belt Conveyor Belt for Canvass Belt
We offer a comprehensive range of Polyester Airslide for use in air gravity conveyors, applied many industries, such as cement detergent, transportation (Bulk haulers, Barges). Our products are semi-permeable and manufactured to meet specific permeation ranges ensuring that uniform volumes of air passing. Thickness from 4mm to 8mm, width max 2600mm.

Application: Cement industry,
Mining industry
Chemical plants
Power plant
Food industry.

We will sell by rolls with big width, meanwhile, we will cut and process it to complete piece, customer will install directly.
Airslide Fabrics are used in various industries for pneumatic conveying,discharge, fluidising of powder or granular matarials.

We offer Airslide Fabrics are used in various industries for pneumatic conveying,discharge,homogenising and fluidising of powder or granular materials.They are used on pneumatic conveyors,silos of every type,vehicle trucks and ail-wagons and also in ships.

Airslide Fabrics are an indispensable part of cement plan,chemical industry,metallurgical industry,bulk cement tank trucks,bulk cement ship and fixed cement tanks.

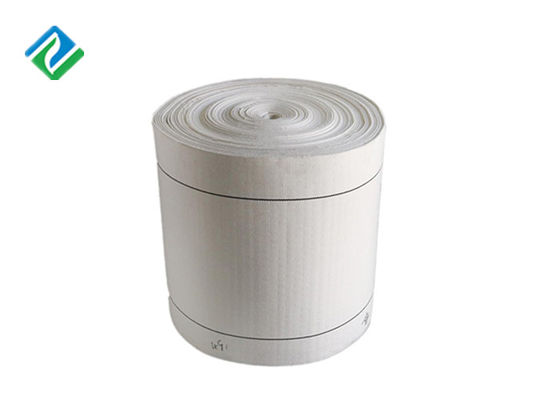

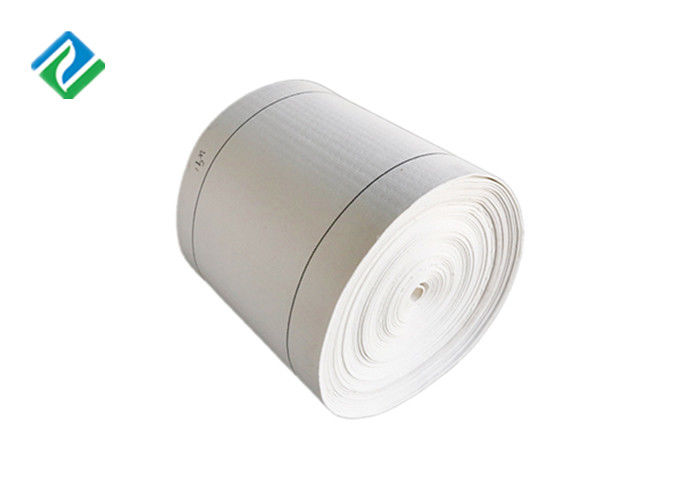

Product Image

Working principle

In cement plant:

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag

In fluidization silo:

Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.

Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.

In cement vessel's hold:

The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt

Application:

In industry

Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust

Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum

Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder

In machinery:

Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems

Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems

Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms

FAQ

1.Are you a Manufacturer?

100% of manufacturers can visit the production line.

2.What is your mainly product?

Our company mainly has six chains of products, including airslide fabric (belt), tubular fabric, solid woven conveyor belts, solid needle conveyor belts, cotton sifter pads, cotton pipes, filtration fabric and filter bags.

3.Where is the nearest shipping port to your plant factory?

We ship the goods via Tianjing Port.

4.What is the location of your company?

Our factory: Tianjin, China (Mainland)

5.Where is the mainly overseas market?

Now we already export the hose to Brazil, South africa, USA, Peru, Chile, UK, Spain, Germany, India, Indonesia, Russia, Ukraine, Iran. India, Saudi Arabia, U.A.E., Korea......

6.What would be your advantage?

We can supply good quality product, good price. good service, fast delivery, also our export people are more professional.
