| 원래 장소: | 안후이, 중국 |
| 브랜드 이름: | Air Slide Fabric |
| 인증: | ISO9001-2015 |
| 모델 번호: | 공기 활주 직물 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 깔판, 판지 상자, 뜨개질을 하는 부대 |
| 배달 시간: | 양에 따르면 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 교섭할 수 있습니다 |
| 상품 이름: | 0.1 마이크론 에어 슬라이드 구성 | 특징: | 시링크-레지스턴트, 난연제, 내유성 |
|---|---|---|---|
| 사용: | 산업 | 중량: | 1 스퀘어 =4 킬로그램 |
| 타입: | 0.1 -0.5 마이크론 캔버스 구성, 산업 구성 | 적용 가능한 산업: | Ｓ : 제조 공장, 시멘트 산업 |
| 색: | 백색/황색 | 최대 폭: | 2600mm |
| 기교: | 0.1 -0.5 마이크론 우븐 | 두께: | 4-8mm |
| 강조하다: | 0.1 마이크론 공기에 쐼 구성,8 밀리미터 공기에 쐼 구성,3200g/m2 100 폴리에스테르 직물 |
||
Product Parameters

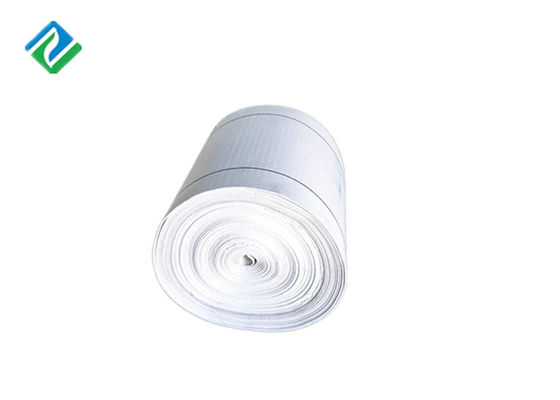

Air slide fabric for cement plant conveyor belt / industrial textile / airslide
Specification data:
Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
USES INDUSTRY:
Cement industies : cement plant ,bulk cement truck and ship
Mining industries :aluminium,lime,coal,phosphates
Chemical plants : soda
Power plants : coal,desulfurize
Food industry : flour
Function
Powder moves on the fluidization conveyor over airslide fabrics.
The fluidization conveyor not have power parts.
Flow is achieved by an air flow through the airslide fabrics that removes friction between powder and the air-permeating textile materials.
We can produce as customers special request.
| name | material | warp tensile strength(N/mm) | thickness(mm) | temperatuer ≤ | instant temperature ≤ | 980Pa air permeability (m3/m2min) | specification(mm) |
|
4layer
|
polyester | ≥ 425 | 3~8 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
|
2layer
|
polyester | ≥ 210 | 2.5~3 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |

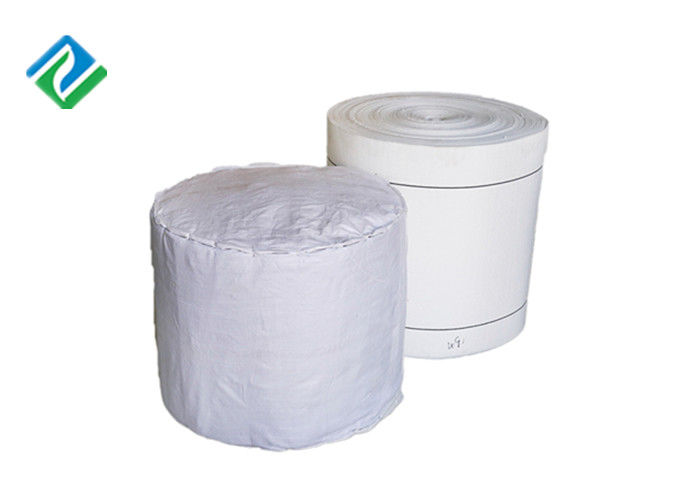

Product Show
Advantages
Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
In machinery:
Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems
Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems
Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms
FAQ
1.Are you a Manufacturer?
100% of manufacturers can visit the production line.
2.What is your mainly product?
Our company mainly has six chains of products, including airslide fabric (belt), tubular fabric, solid woven conveyor belts, solid needle conveyor belts, cotton sifter pads, cotton pipes, filtration fabric and filter bags.
3.Where is the nearest shipping port to your plant factory?
We ship the goods via Tianjing Port.
4.What is the location of your company?
Our factory: Tianjin, China (Mainland)
5.Where is the mainly overseas market?
Now we already export the hose to Brazil, South africa, USA, Peru, Chile, UK, Spain, Germany, India, Indonesia, Russia, Ukraine, Iran. India, Saudi Arabia, U.A.E., Korea......
6.What would be your advantage?
We can supply good quality product, good price. good service, fast delivery, also our export people are more professional.
