| 원래 장소: | 안후이, 중국 |
| 브랜드 이름: | Air Slide Fabric |
| 인증: | ISO9001-2015 |
| 모델 번호: | 공기 활주 직물 |
| 최소 주문 수량: | 100 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 깔판, 판지 상자, 뜨개질을 하는 부대 |
| 배달 시간: | 양에 따르면 |
| 지불 조건: | T / T, 웨스턴 유니온, L / C, 30 % 미리, 균형 전에 |
| 공급 능력: | 교섭할 수 있습니다 |
| 상품 이름: | 100 -200 마이크론 에어 슬라이드 구성 | 특징: | 100 -200 마이크론 시링크-레지스턴트, 난연제, 내유성 |
|---|---|---|---|
| 사용: | 산업 | 중량: | 1 스퀘어 =4 킬로그램 |
| 타입: | 100 -200 마이크론 캔버스 구성, 산업 구성 | 적용 가능한 산업: | Ｓ : 제조 공장, 시멘트 산업 |
| 색: | 백색/황색 | 최대 폭: | 2600mm |
| 기교: | 100 -200 마이크론 우븐 | 두께: | 4-8mm |
| 강조하다: | 4 밀리미터 폴리에스테르 에어 슬라이드 구성,100 마이크론 폴리에스테르 에어 슬라이드 구성,8 밀리미터 에어 슬라이드 구성 |
||
Product Parameters

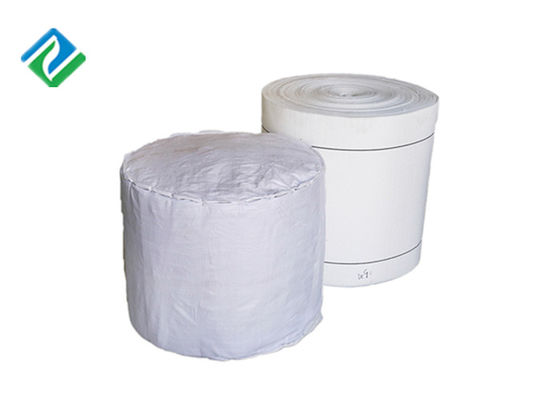

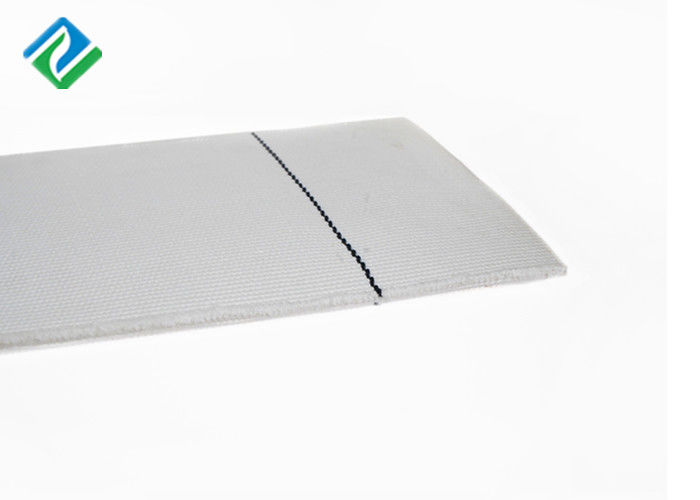

Air slide fabric for cement plant conveyor belt / industrial textile / airslide
Specification data:
Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
USES INDUSTRY:
Cement industies : cement plant ,bulk cement truck and ship
Mining industries :aluminium,lime,coal,phosphates
Chemical plants : soda
Power plants : coal,desulfurize
Food industry : flour
Function
Powder moves on the fluidization conveyor over airslide fabrics.
The fluidization conveyor not have power parts.
Flow is achieved by an air flow through the airslide fabrics that removes friction between powder and the air-permeating textile materials.
We can produce as customers special request.
| name | material | warp tensile strength(N/mm) | thickness(mm) | temperatuer ≤ | instant temperature ≤ | 980Pa air permeability (m3/m2min) | specification(mm) |
|
4layer
|
polyester | ≥ 425 | 3~8 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
|
2layer
|
polyester | ≥ 210 | 2.5~3 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
The polyester air slide canvas is made of special yarns by special woven techniques. Adequate strength, thickness, tightness and perfect dimensional stability, this product enjoys good fame at home and abroad.
Should you inquire any further questions, please be free to send me a message. I'll reply within 24 hours.
1. Material: 100% Polyster yarn
Tickness: 5-6mm
2. Air permeability:0.4-10KPa at 0.2MPA 2M3/M2 min
3.Temperature resistance :180°C
4. Tensile strength:warp: ≥425 N/mm
5. Resistance force:1.2~1.3Kpa
6. No stretch, no deformation, no delamination, long life time
7. Canvas warp and weft clear, surface clean and smooth, thickness is even, size is stable
8. High temperature resistance and dementional stablity
9. small moisture absorption, low adhesion, antisepsis, mold control, high strength, friction resisting, resistant to impact.
10. Applications: mainly cement inudstry, also for power plant, chemical industry and metallurgy
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag
Product Show
FAQ
1.Are you a Manufacturer?
100% of manufacturers can visit the production line.
2.What is your mainly product?
Our company mainly has six chains of products, including airslide fabric (belt), tubular fabric, solid woven conveyor belts, solid needle conveyor belts, cotton sifter pads, cotton pipes, filtration fabric and filter bags.
3.Where is the nearest shipping port to your plant factory?
We ship the goods via Tianjing Port.
4.What is the location of your company?
Our factory: Tianjin, China (Mainland)
5.Where is the mainly overseas market?
Now we already export the hose to Brazil, South africa, USA, Peru, Chile, UK, Spain, Germany, India, Indonesia, Russia, Ukraine, Iran. India, Saudi Arabia, U.A.E., Korea......
6.What would be your advantage?
We can supply good quality product, good price. good service, fast delivery, also our export people are more professional.
